Lx 500

Helping Make Your Next Great Discovery Possible

The Lx 500 clinical microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.

Labomed Lx 500 Clinical Research Laboratory Microscope

Lx 500 Advantages:

Labomed Lx 500 Clinical Research Laboratory Microscope Plan Optics

RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity. Proprietary MaxLite coatings further enhance optical performance.

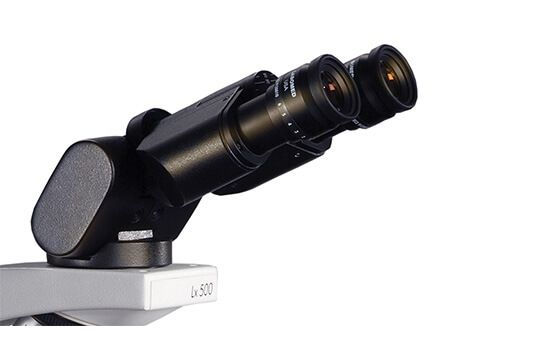

Labomed Lx 500 Clinical Research Laboratory Microscope Articulating Head

With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.

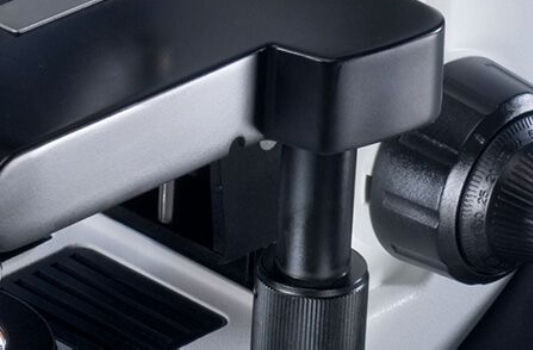

Labomed Lx 500 Clinical Research Microscope Focus Drive

A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.

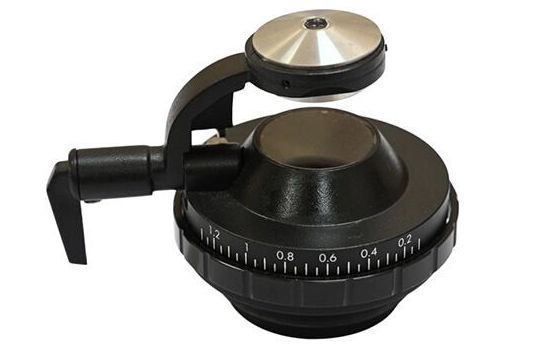

Labomed Lx 500 Clinical Research Laboratory Microscope Kohler Illumination

True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Lighting options include 30W Halogen (approx. 500 hours) and rechargeable LED (approx. 100,000 hours).

Microscope Specifications

  • Stand

    Single mold sturdy stand with anti rust materials. Extended base for better stability
  • Viewing Body

    Binocular, Trinocular 30° and Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment
  • Eyepiece

    Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated
  • Nosepiece

    Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip
  • Objectives

    RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated
  • Mechanical stage

    Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder
  • Condenser

    Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides
  • Focusing

    Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation
  • Illumination

    True Köhler illumination with halogen 6V-30W lamp with variable illumination control. LED option available.
  • Electronics

    Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer

Dimensions (mm)

Labomed Lx 500 Clinical Research Laboratory Microscope Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
  • Dual Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Soft Carrying Case

Package Contents

  • Power Cable (6ft)
  • Cargille Immersion Oil
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing

Configurations

Labomed Lx 500 Clinical Research Laboratory Microscope System Drawing

Downloads

Labomed Lx 500 Clinical Research Laboratory Microscope Brochure

Lx500 Brochure

Learn more about the Lx500's unique value offering.
Labomed Lx 500 Clinical Research Laboratory Microscope User Manual

Lx500 User Manual

Learn all about the Lx500, its functions, and more.
