Luxeo 2S Microscope

Durable Construction for the Classroom

The Luxeo 2S encompasses all the performance benefits of a university level microscope in a highly affordable and durable middle and high school solution. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 2S stereo microscope is perfect for student operation.

Luxeo 2S Microscope

Luxeo 2S Advantages:

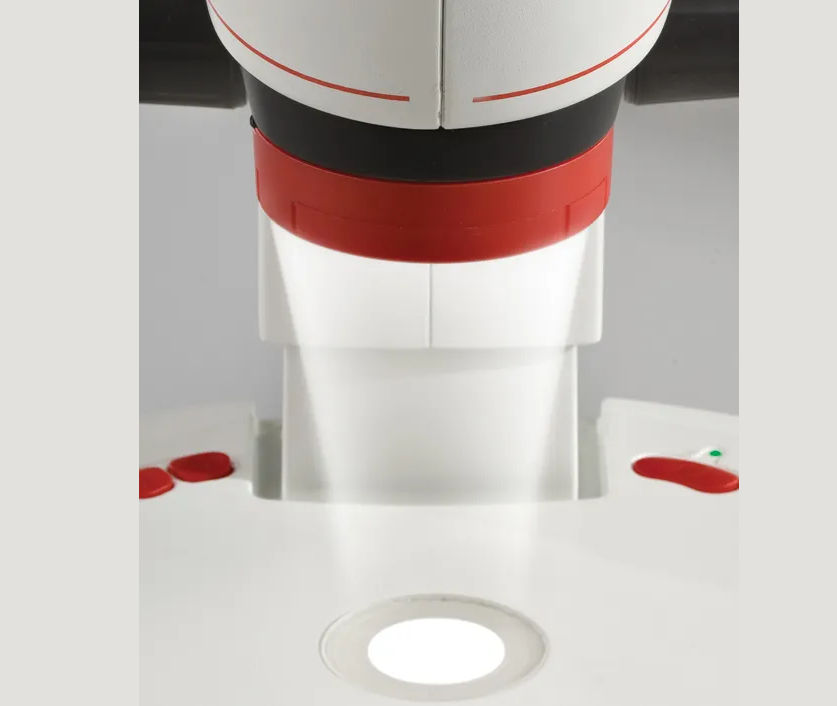

Luxeo  2S Microscope Ringlight

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous Intensity control is managed through a control dial on ring light.

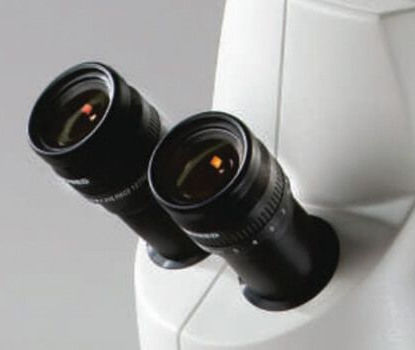

Luxeo  2S Microscope Precision Optics

Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

Luxeo 2S Microscope Responsive Focus

Responsive focus and mag-change knobs allow for stress free operation with minimal wear and tear to gears, all of which are made of high-strength steels.

Microscope Specifications

  • Optical System

  • Magnification

    1x/3x; 2x/4x
  • Eyepieces

    Widefield 10x/18mm (interchangeable)
  • Diopter Correction

    + / - 5 diopters
  • Viewing Body

    Integrated Binocular, 45º, 52-74mm diopter adjustment
  • Working Distance

  • Magnification Range

    10x-30x or 20x-40x
  • Object Field Diameter

    18 to 6.0mm or 9 to 4.5mm
  • Eye Guards

    Rubber, Retractable
  • Illumination Control

    Incident / Transmitted ("Oblique" Settings) / Combined illumination control buttons with rheostat dial for light intensity control
  • Incident Light

    + / - 30º Oblique illumination and variable intensity control dial
  • Incident Light Method

    Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)
  • Transmitted Light

    3-LED super bright glow screen, low heat emission
  • LED Life

    Up to 25,000 hours
  • Light Quality

    Homogeneous daylight (6500ºK), free of UV and IR emmissions
  • Power Supply

    Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stablizer

Dimensions (mm)

Labomed Luxeo 2S Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Auxiliary Eyepieces
  • Soft Carrying Case

Package Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth


Labomed Luxeo 2S System Drawing


Labomed Luxeo 2S Microscope Brochure

Luxeo 2S Brochure

Learn more about the Luxeo 2Ss unique value offering.
Labomed Luxeo 2S User Manual

Luxeo 2S User Manual

Learn all about the Luxeo 2S, its functions, and more.
