Prima Pro

Dental Prima ProMICROSCOPE

Experience image clarity and detail in the highest fidelity, allowing you to enjoy refined and relaxed examination and treatment planning. Redefining the standards of excellence, Prima Pro boasts an array of user-focused features.

An Auto Balance Arm (ABA) presents a unique ability in positioning your microscope thanks to an electromagnetic clutch system that glides at the push of a button with exacting precision ensuring drift-free performance. With user controls conveniently within reach, Prima Pro maintains stability no matter what accessories or cameras are added. This streamlined design enhances workflow efficiency and ensures consistent and comfortable performance.

ADVANTAGES OF Prima Pro

Magna Advantages

Experience bright, homogenous illumination in Prima Pro thanks to an efficient 50W LED system that delivers brilliant, glare-free coaxial light. With a rated 50,000 hours of LED life, Prima Pro’s optical design ensures shadow- free illumination with light temperature near to natural daylight. Green and yellow filters come standard, and now a new TrueLux filter helps create a soft warm color temperature more similar to halogen light for those users looking to make a gradual change to LED.

Magna Advantages

High quality and low impurity glass ensure a crisp image at all magnifications, thanks to a world class design and optical manufacturing process. A host of accessories including a rear facing beam splitter and our universal phone adapter bring a splash of balance and modernity to your practice.

Magna Advantages

Thanks to ergonomically located controls and components and fluid articulation of arm and optical carrier, Prima Pro provides fatigue-free use day after day in your dental practice. Our electromagnetically driven automatic balancing arm ensure precision position and viewing angles without an ounce of drift, no matter how the system is loaded. Balance at every level!

MICROSCOPE SPECIFICATIONS
  • Accessories (Optional)

    Beam splitters (straight/inclined, Rotoplate and/or extender, Proline range of camera/video adapters, Universal phone adapter, NuVar variable working distance objectives, Spacers and extender arms, Monitor mount, Assistant viewer bridge

  • Binocular Tube

    0-210° inclinable ergonomic head with IPD adjustment controls

  • Objective

    Standard: f250 mm focusable; Options: f200 mm focussable; f300 mm focussable; f400 mm focussable NuVar 10: f 300-400 mm, WD: 220-320 mm NuVar 20: f 295-495 mm, WD: 200-400 mm

  • Eyepiece

    WF 10X/18mm with retractable eye guards, diopter adjustment ± 5mm with diopter lock; optional: WF 12.5X/18mm

  • Microscope carriers

    360° Auto Balancing Arm (ABA), electromagnetically driven, 2-button controls for left and right handed users

  • Default

    undefined

  • Stand

    Starbase on locking castor wheels. Optional Wall and Ceiling mounts.

  • Built-in-Filters

    Yellow (resin curing), Green (blood free), and TrueLux (soft warm color temperature)

  • Diopter Adjustment

    Both eyepieces, locking

  • Focusing

    Manual, fine focus controls on objective lens

  • IPD Range

    49-78 mm

  • Microscope

    Apchromatic 6 step: 0.3x, 0.5x, 0.8x 1.3x, 2.0x and 3.0x, MaxLite coated optics

  • Light Source

    200,000k+ Lux output, 50w LED fiber-optically delivered with control knob ergonomically positioned on handle, 50,000 hrs rated diode expectancy, 100-240V universal power supply

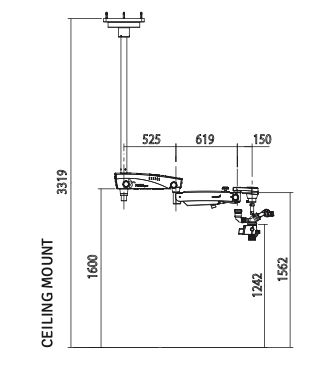

  • Mounting Options

    Floor stand, wall mount and ceiling mount

  • Package Contents

    Tools for assembly, dust cover

  • Apochromatic Magnichanger

    Galilean, 6 step

Magna Advantages
Magna Advantages
Magna Advantages

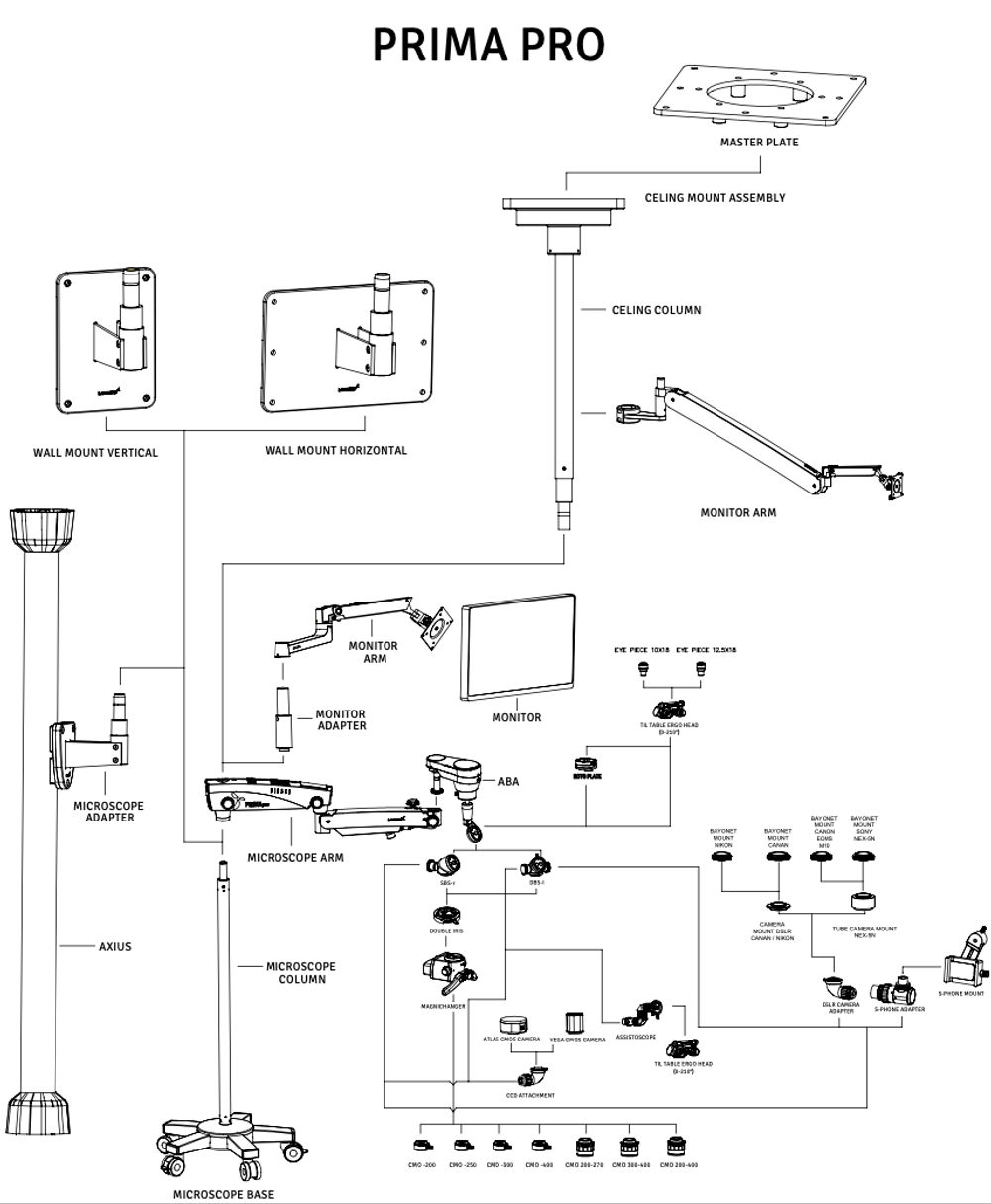

CONFIGURATIONS
Configurations
DOWNLOADS
User Manual

User Manual

Learn about the Prima Pro, its functions, and proper maintenance.

Brochure

Prima Pro Brochure

Learn more about the Prima Pro's unique features and options.
