Cameras iVu Touch Accessories

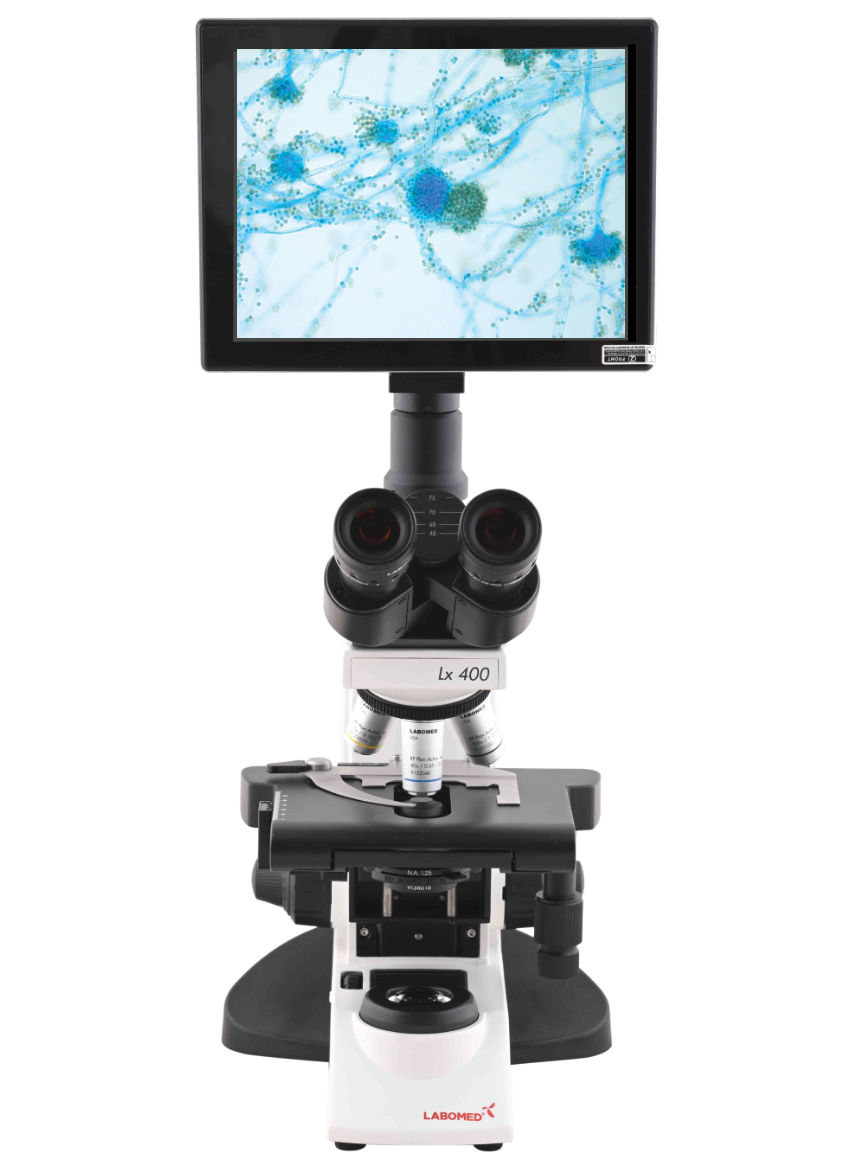

The iVu Touch camera is a 5MP high-definition CMOS solution that integrates the cameras sensor into a compact screen nearly 10 inches in size. A super fast frame rate and superb contrast with high accuracy in color reproduction set this solution apart. HD video streaming, and an SD card interface make the system versatile, with an onboard USB port to control features using a mouse. Additionally, measurement and parameter settings may be controlled directly on screen. This truly is an all-in-one solution.
Default
undefined
Frame rate
30 fps (@1920x1080)
Interface
USB 2.0, SD card, USB for wifi mouse
Pixel Size
2.8μm x 2.8μm
Image processing
High speed FPGA, progressive scan, advanced noise reduction
Pixel clock
48 MHz
Dynamic range
60 dB
Optical connection
C- Mount
Voltage
DC-12V
Active area
5.70mm x 4.28mm
Sensor resolution
Dynamic 2304x1728 / 4608x3456 pixels Static 4608x3456 pixels
Ambient conditions
Operating Temperature: 0-60˚C Humidity: 45-85%
Sensor
1/2.5” 5.0 MP Color CMOS
Measurement
Yes
Exposure
1ms-1s auto/manual, white balancing, electronic rolling shutter
