MET 400

A High-Precision Metallurgical Tool for Demanding Environments

The Labomed® MET 400 is a workhorse tabletop metallurgical microscope that takes on a compact and highly durable form, making it the ideal candidate for daily inspection needs. Whether inspecting heat treated and stress tested metals, glass, plastics, chemicals, contaminants, or thin films, the MET 400 delivers pristine resolution and contrast while ensuring comfort over long periods of use.

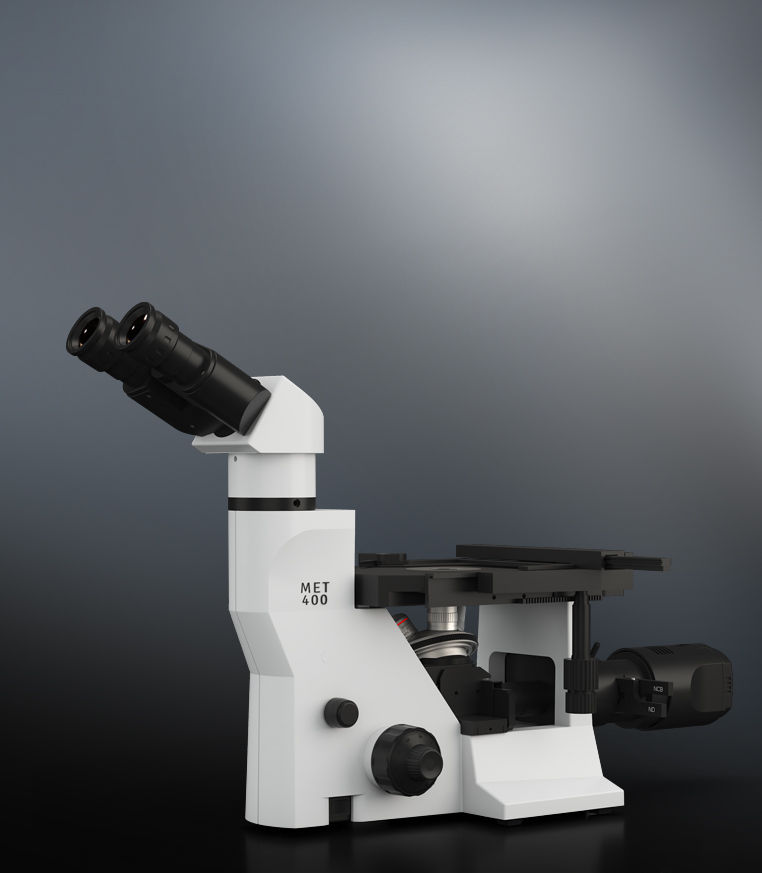

Labomed MET 400 Metallurgical Microscope

MET 400 Advantages:

Labomed MET 400 Metallurgical Microscope MaxLite™ Coating

The ML Infinity Corrected Plan optical series promises image fidelity. Proprietary MaxLite™ coatings deliver superior anti-reflective and scratch resistant properties. Long working distance and efficient design provide for aberration-free imaging. A dry 100x objective is optional.

Labomed MET 400 Metallurgical Microscope Polarizing Kit

A slide-in polarizing kit with built-in polarizer/analyzer can be added as an option, providing 360 degrees of light extinction.

Labomed MET 400 Metallurgical Microscope Light Source

An ultra bright 6V-30W light source with a high color rendition index faithfully illuminates specimens, particularly those used in color sensitive applications such as photomicrography.

Inverted Metallurgical Microscopy

  • Stand

    Ergonomic sturdy stand made of anti-rust material
  • Viewing Body

    Siedentopf Binocular or Trinocular head; 30° inclined, fixed; IPD 52- 75mm.
  • Eyepiece

    Focusable Wide Field eyepieces 10x/22mm, with foldable eye guard, antifungal.
  • Nosepiece

    Reverse angle quadruple nosepiece with click stops and rubber grip.
  • Objectives

    ML series infinity corrected, DIN Plan Achromatic objectives 5x, 10x, 20x and 50x; antifungal, MaxLite (TM) coated; Optional 100x Dry objective.
  • Focusing

    Coaxial coarse and fine focusing system with tension adjustment. Focus graduation is 2um per division.
  • Illumination

    Koehler episcopic illumination system with diffuser; Halogen 6V-30W with intensity control; 100V - 240V universal power supply.
  • Stage

    Fixed stage with specimen holder - 3 types (38mm, 55mm, 65mm). Optional mechanical stage.
  • Electronics

    Universal power supply (110V-240V) with built-in voltage stabilizer
  • Optional

    100x Dry objective; Mechanical stage; Adapters for video and digital cameras

Dimensions (mm)

Labomed MET 400 Metallurgical Microscope Line Drawing

Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase and Fluorescence Kits
  • Auxiliary Objectives and Eyepieces
  • Digital Cameras and Adapters
  • Soft Carrying Case

Package Contents

  • Power Cable (6ft)
  • Nylon Dust Cover & Cleaning Cloth
  • Instapack Packaging

Configurations

Labomed MET 400 Metallurgical Microscope System Drawing

Downloads

Labomed MET 400 Metallurgical Microscope Brochure

MET 400 Brochure

Learn more about the MET 400's unique value offering.
Labomed MET 400 Metallurgical Microscope User Manual

MET 400 User Manual

Learn all about the MET 400, its functions, and more.
