Lx 300 Educational & Laboratory Microscope | Labomed®
Lx 300

Upright Lx 300MICROSCOPE

Today's educators call for a classroom microscope that would be ideal for continued education and pre-clincial programs. Demanded is a product with crisp optics, ergonomic features for a mature classroom, and a price point that supports institutional purchases. Provided is the Lx 300, putting all requests to rest.

ADVANTAGES OF Lx 300

Magna Advantages

A Butterfly style binocular head will enable two distinct viewing positions for users of different heights, thus making the Lx 300 comfortable and versatile in use.

Magna Advantages

An eco friendly and highly efficient rechargeable LED (approx. 100,000 hours bulb life) serves as a powerful daylight color temperature illumination source that will make bulb change a thing of the past.

Magna Advantages

EP2 series Infinity Corrected Plan Achromatic objectives provide crisp and accurate images at all powers. The optical system allows for the introduction of digital accessories while maintaining the highest level of performance.

MICROSCOPE SPECIFICATIONS
  • Stand

    Single mold sturdy stand with anti-rust materials. Ergonomic base for hand rest and greater stability.

  • Objective

    EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

  • Focusing

    Coaxial coarse and fine focus on ball drive system for smooth operation

  • Illumination

    Intensity controlled LED (up to 50,000 hours of LED life)

  • Electronics

    Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer

  • Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
  • Dual Viewing Bridge
  • Quintuple Position Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Soft Carrying Case
  • Eyepiece

    Wide field 10x/18mm with foldable eye guards, lockable, antifungal

  • Mechanical Stage

    Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder.

  • Nosepiece

    Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

  • Packaged Contents

  • Power Cable (6ft)
  • Cargille Immersion Oil
  • Spare bulb (20w version only)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing
  • Default

    undefined

  • Viewing Body

    Siedentopf Binocular (Butterfly style) or Trinocular head, 45° inclined, 360° rotatable, with adjustable viewing height up to 40mm, IPD 48 - 75mm

  • Condenser

    Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides

Magna Advantages

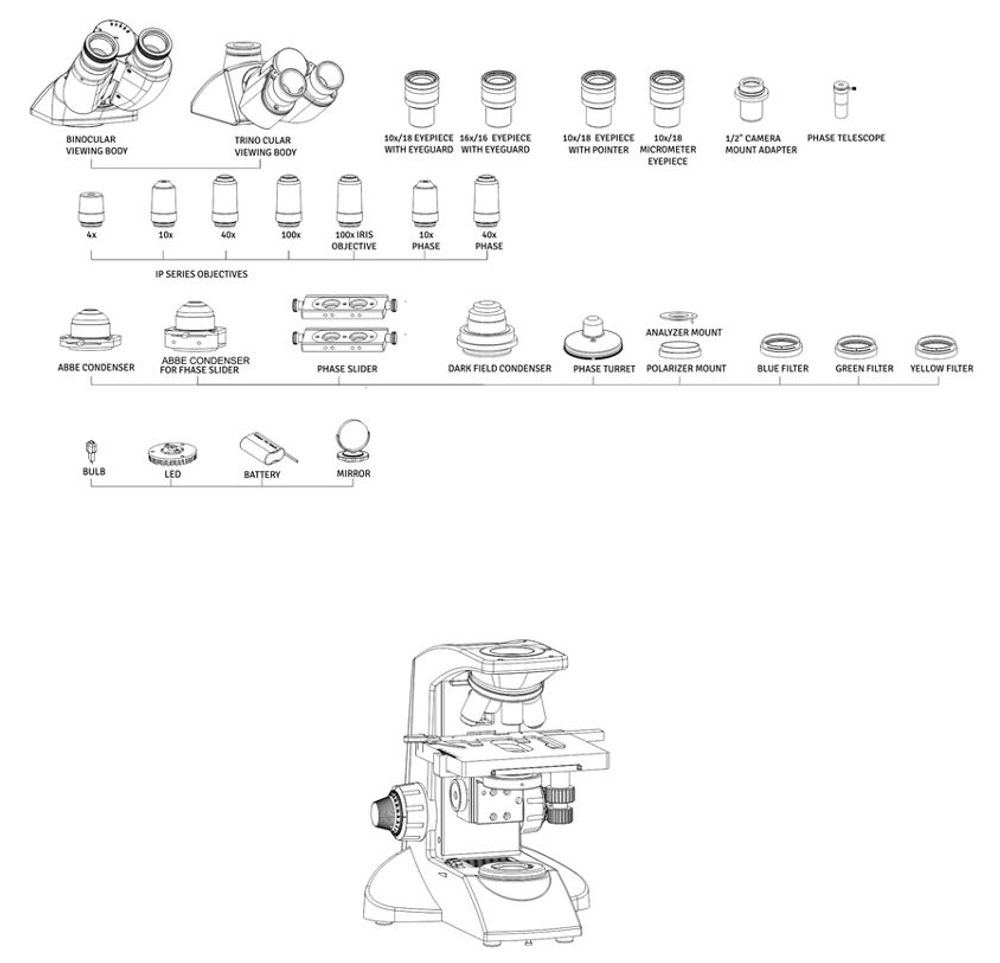

CONFIGURATIONS
Configurations
DOWNLOADS
Brochure

Lx300 Brochure

Learn more about the Lx300's unique value offering.

User Manual

Lx300 User Manual

Learn all about the Lx300, its functions, and more.
