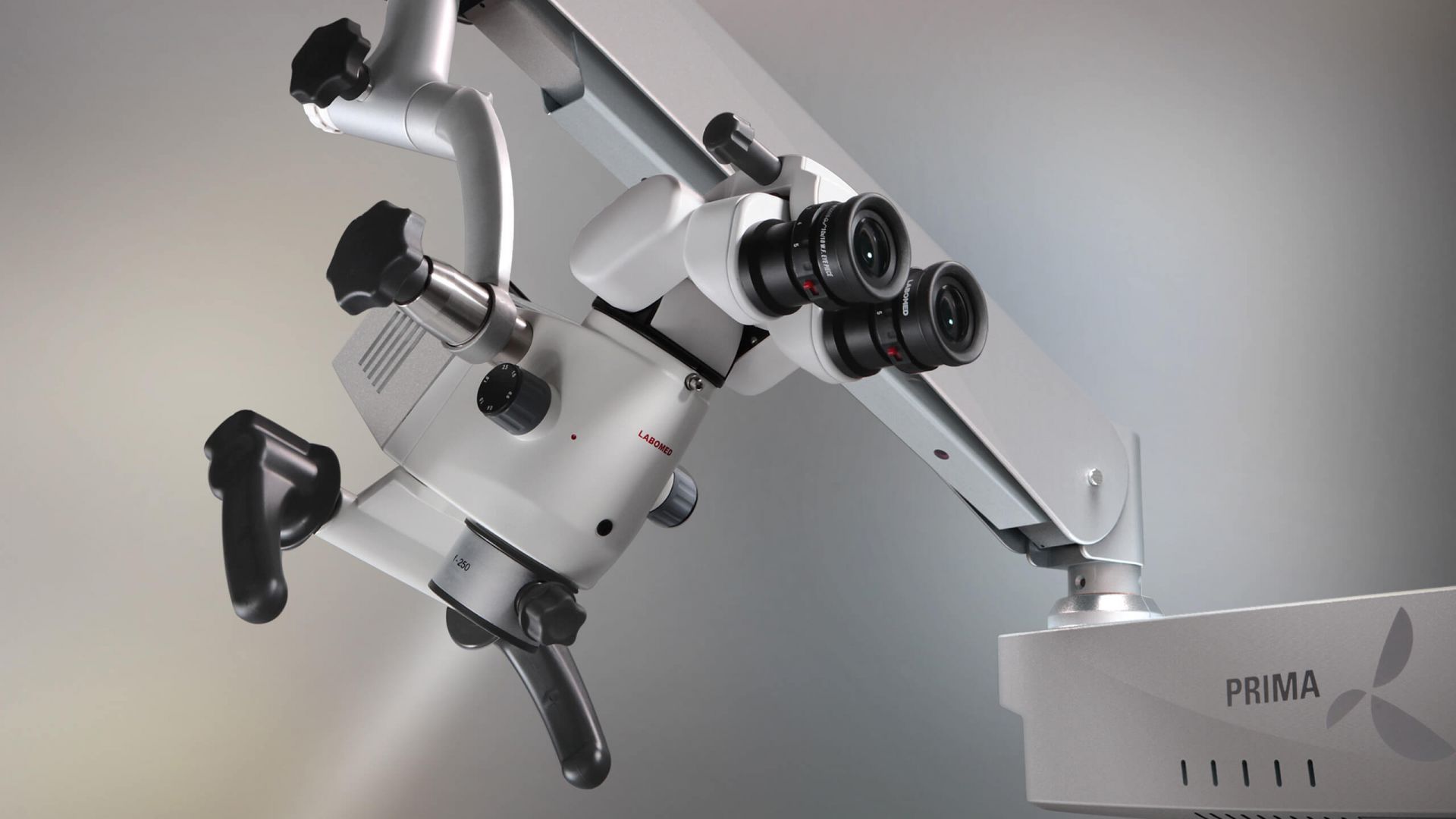

Prima OPH Microscope

High Value Technology in Cataract Removal

The Prima OPH is a versatile microscope designed for both surgical and clinical environments. With an intelligent LED illumination system that runs long and cool, an Apochromatic optical system, and superb RedReflex system, and motorized movement, this microscope delivers on the promise of high performance at affordability.

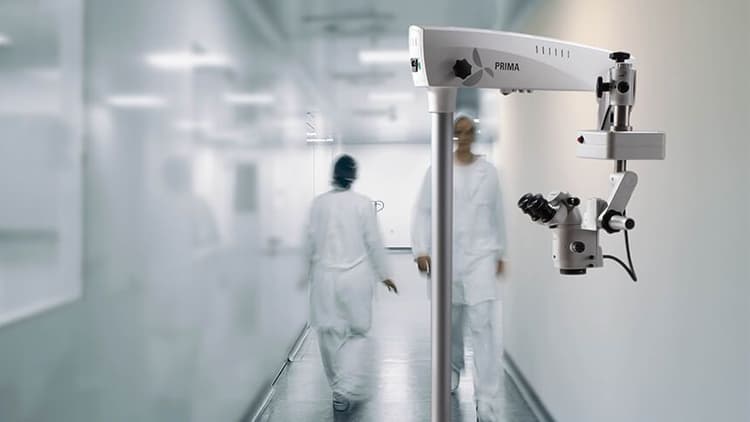

Labomed Prima OPH Microscope

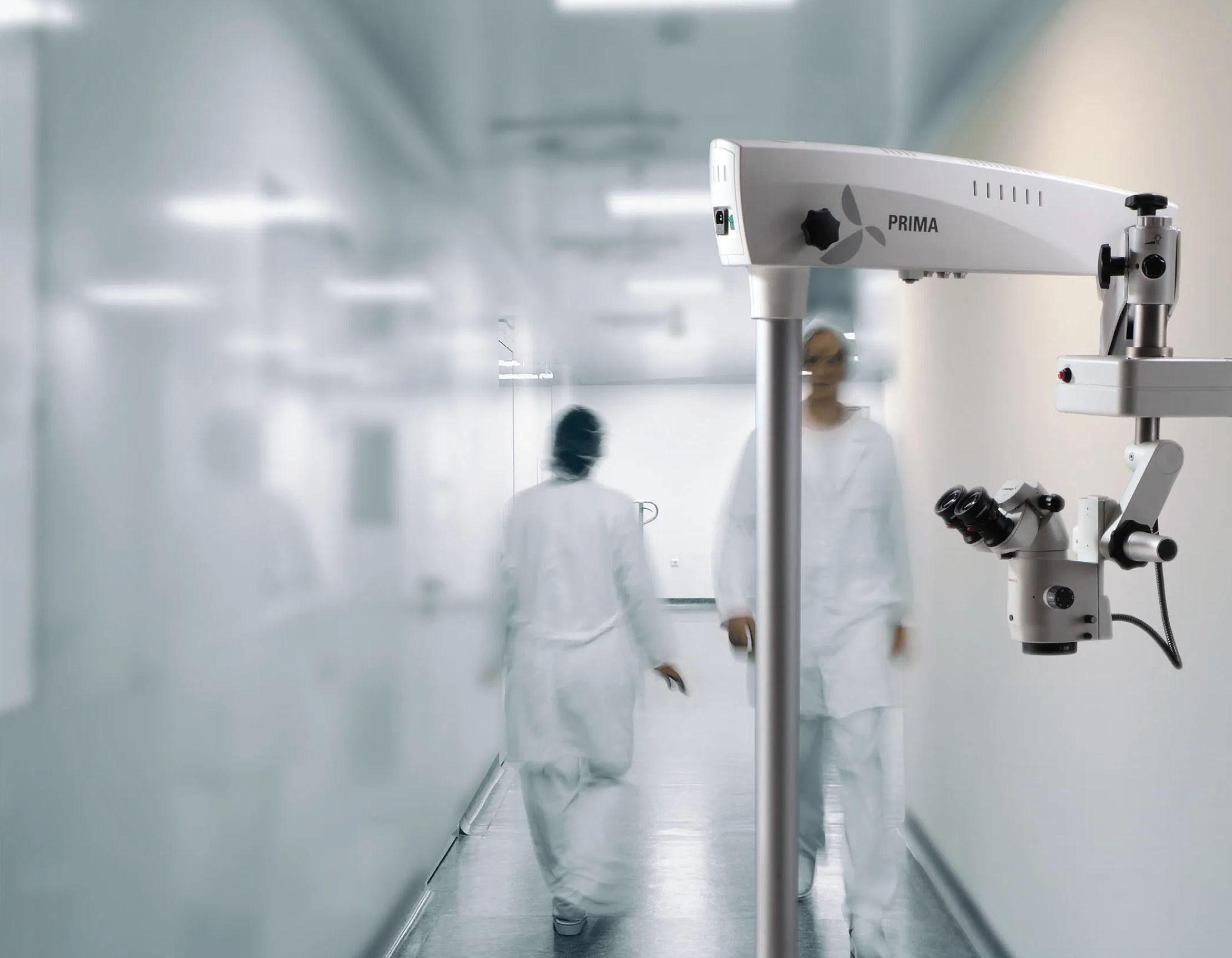

PRIMA OPH Advantages:

Labomed Prima OPH Bright LED

A super bright LED produces over 80,000 Lux with a color temperature of 5700 degrees Kelvin to produce a natural daylight illumination. A run time of 60,000 hours eliminates the need for bulb change. Electronics built directly into the swivel arm make the Prima OPH the most compact solution in its class.

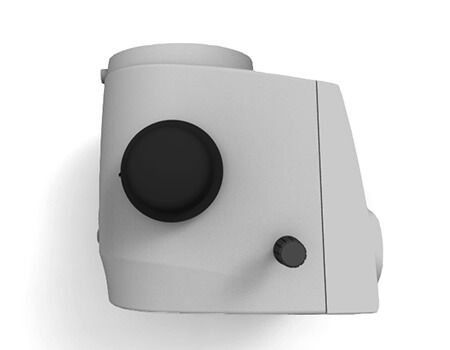

Labomed Prima OPH Apochromatic optical system

An Apochromatic optical system produces sharp, aberration-free images at every step. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics.

Labomed PRIMA OPH RedReflex

RedReflex is made possible in the Prima OPH thanks to an ingenious optical design, enabling visualization of an illuminated retina for easy detection of ruptured vessels, arteries, or damage to the optic disc.

Labomed PRIMA OPH Adapters

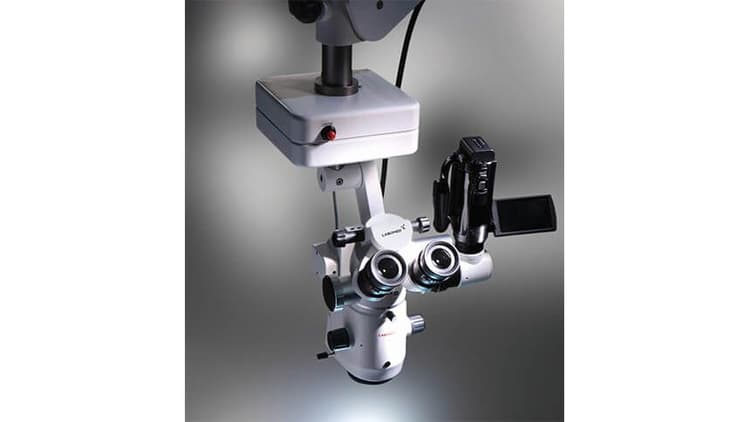

Ophthalmologists can use a digital SLR or video camera, thanks to a wide selection of adapters available through the ProLine™.

Microscope Specifications

  • Binocular Tube

    45° inclined head
  • Apochromatic Magnichanger

    5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
  • Eyepiece

    WF 10X/16 mm with eye guards, diopter adjustment ± 5 mm and diopter lock; Optional: WF 12.5X/16 mm
  • Objective

    f-200 mm Optional: f-175 mm
  • Light Source

    50W LED
  • Built-in-Filters

    Green & Blue
  • Vertical Movement

    550 mm

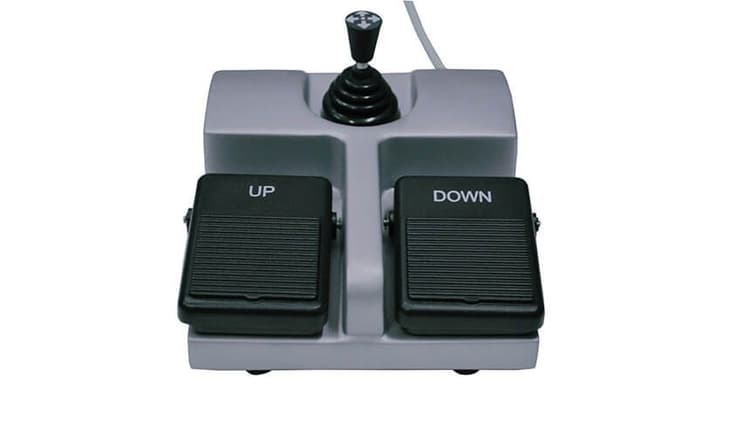

  • Microscope Carriers

    Multi-axial (XYZ) foot control (PRIMA OPH X-Y & Z AXIS)
  • Microscope Carriers

    Single axis (Z) foot control (PRIMA OPH Z AXIS)

Package Contents

  • Tools for Securing Base and Pillar
  • Sterilizable Knob Covers
  • Nylon Dust Cover

Accessories (Optional)

  • 0-210° tiltable ergonomic head
  • Double beam splitter
  • Assistant binocular attachment
  • ProLine range of camera adapters

Dimensions (mm)

Prima OPH Microscope Line Drawing

Configurations

Prima OPH Microscope System Drawing

Downloads

Labomed Prima OPH Microscope Brochure

Prima OPH Brochure

Learn more about the Prima OPH's unique value offering.
Labomed Prima OPH Microscope User Manual

Prima OPH User Manual

Learn all about the Prima OPH, its functions, and more.

Video

Prima Features & Benefits

ProLine Accessories Overview
